4 Pin SPST 5V 10 Amp Relay 0.36mW Dielectric Withstand 2.5kv RD-105DM-A

Brand Name : WRG

Model Number : RD-105DM-A

Certification : TUV/UL/CQC

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 500K per month

Delivery Time : 4weeks

Packaging Details : 25pcs/box or customized package

Keyword : 12V SPST Relay

Coil input voltage : 5VDC

Coil power : 360mW

Contact rated current : 15A 277VAC,10A 277VAC,1/4HP 240VAC,TV-5①250VAC

Contact number : 1 Form A

Contact Material : Ag allow

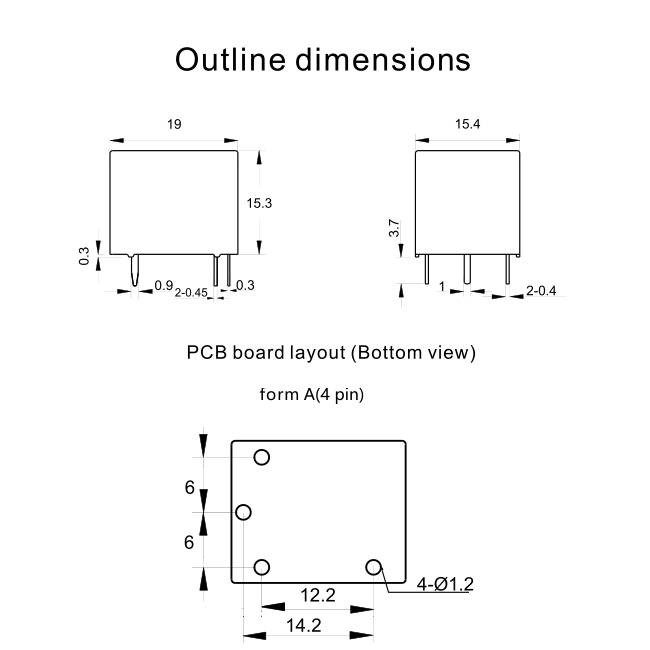

Dimension(L*W*H)mm : 32*27*20

Features : TV-5 available

Contact Now

4 Pin SPST 5V 10 Amp Relay 0.36mW Dielectric Withstand 2.5kv RD-105DM-A


12V SPST Relay Description:
WRG's RA series relay, compact design, load TV-5 acceptable, have enough insulation distance for control switch, Flux-resistance, class F
for coil insulation,4pins or 5pins for option, and meet with IEC60079-15 anti-explosion standard, available to many fields, such as industrial control, automobile industry, etc.

12V SPST Relay Features:
1. 1 Form A
2. Meet IEC60079-15 anti-explosion standard
3. TV-5 available
4. Compact design

12V SPST Relay Applications:
1. Various home appliance
2. New energy, such as fast-charging stations for vehicles
3. Industry control



12V SPST Relay Specification:

Coil data:
Coil input voltage 3/5/6/9/12/24/48/60VDC
Coil power 360mW
Response voltage ＞75％(Room temp.)
Drog out voltage ＜5％(Room temp.)
Operating time / Release time Less than 10ms/Less than 5ms


For further datasheets, please click the link below or contact us.
RD Series.pdf

4 Pin SPST 5V 10 Amp Relay 0.36mW Dielectric Withstand 2.5kv RD-105DM-A
4 Pin SPST 5V 10 Amp Relay 0.36mW Dielectric Withstand 2.5kv RD-105DM-A
