RA1-112LM 0.9W 30 Amp 12V SPST Relay Normal Open Dielectric Withstand 4KV For Coffee Machine

Brand Name : WRG

Model Number : RA1-112LM

Certification : TUV/UL/CQC

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 500K per month

Delivery Time : 4weeks

Packaging Details : 25pcs/box or customized package

Keyword : 12V SPST Relay

Coil input voltage : 12VDC

Contact number : 1 Form A

Contact rated current : 30A 250VAC

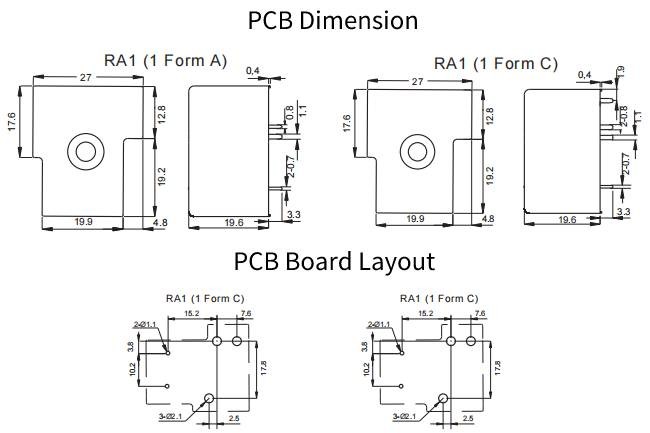

Dimension LxWxH(mm) : 32.0x27.0x20.0

Enclosure type : flux-resistanace

Weight(g) : 26

Features : 4pins,1 form A

Contact Now

RA1-112LM 0.9W 30 Amp 12V SPST Relay Normal Open Dielectric Withstand 4KV For Coffee Machine

12V SPST Relay Description:
WRG's RA series is a high capacity, has good endurance, and with Anti-explosion standard general relay. multiple input voltage,4pin or 5pin
for options specially RA5xx has ensured enough insulation distance.

12V SPST Relay Features:
1. 4pins,1 form A
2. 30A high capacity
3. reliable and good endurance
4. Meet IEC60079-15 anti-explosion standard
5. 4kv dielectric withstand voltage between coil and contact

12V SPST Relay Specification:

Coil data:
Coil input voltage					5/8/9/12/18/22/24/48VDC
Coil power					L Type:900mW D Type:1000mW
Response voltage					DC:＞75％(Room temp.)
Drog out voltage					DC:＜5％(Room temp.)
Operating time / Release time					Less than 15ms/Less than 10ms
